100 Ton Beam Launcher Machine Double Truss Bridge Erection

100 Ton Double Truss Bridge Erection Machinery Beam Launcher Machine

Product Description

100 Ton Double Truss Bridge Erection Machinery Beam Launcher Machine is often used in port and railway cargo transportation. It is a high-quality hoisting machine with excellent structure, stable operation, safe and reliable, low maintenance cost and easy to control. Slag machine.
The structure of the crane mainly consists of: automatic electric control system, truck operation mechanism, lifting trolley, excellent hardness of the steel structure as the bearing capacity.
100 Ton Double Truss Bridge Erection Machinery Beam Launcher Machine can be divided into highway erecting machine, railway erecting machine. Can also be divided according to the layout difference, such as: help guide beam type, transport frame, bridge machine price, through the tunnel and so on. Can also be set up according to the method of division, segment assembly, such as the whole hole. Also has according to the tonnage to divide, the highway bridge machine general tonnage is smaller than the force, generally less than 300 tons. Railway bridge erecting machine especially high-speed railway bridge erecting machine general tonnage than force, 450 tons, 900 tons, are very rare. Also some factory production of bridge erecting machine can be road and rail dual-use, erecting machine manufacturers, this kind of erecting machine is generally suitable for ordinary railway Bridges.

Parts Details Of Crane

Product Advantages

• 100 Ton Double Truss Bridge Erection Machinery Beam Launcher Machine starts, runs stably, has no electricity, has excellent mute effect, can reduce the harm of noise; Low failure rate, reduce maintenance cost, service life up to 30 years, no worries.
• 100 Ton Double Truss Bridge Erection Machinery Beam Launcher Machine is light in weight, compact in structure and low in energy consumption. The equipment adopts a special design concept and features small in size, light in weight and low in wheel pressure. Compared with traditional cranes, the distance from the hook to the wall is smaller, the headroom is lower, the operation is closer, and the lifting height is higher, which fundamentally increases the available working space of the existing factory.
• Use of high strength galvanized steel wire rope, disc brake, hard gear reducer, high programmable lift, anti-deflection guide rope and other hardware configuration. With real-time monitoring, electronic anti-shake, micro performance, micro speed performance, zero speed hover, 4G remote communication, remote diagnosis, automatic control and other intelligent modular functions, so that it is easy to carry out intelligent traffic.
• 100 Ton Double Truss Bridge Erection Machinery Beam Launcher Machine design is not only light in weight, but also can be programmed to improve the ideal value to complete the overall protection, its protection level is IP55, h-class insulation, has a huge role. In the system structure, the hard tooth surface is slow, the bearing capacity is high, the life is long, the electromagnetic disc brake, the dustproof, the self-adjusting brake, does not need the manual adjustment, the semi-oily high strength galvanized anti-rust steel wire rope, is free from worry, in addition, also USES for the motor, the brake and the slow box three in one drive.

Operation Requirements

• Professional technicians shall read the operation instruction carefully before operation;
• Check whether the power connection and fastening of all parts are intact, and use only if there is no abnormal phenomenon;
• In the process of using the bridge erecting machine, it is customary to check whether there are abnormal conditions, and immediately shut down for maintenance.

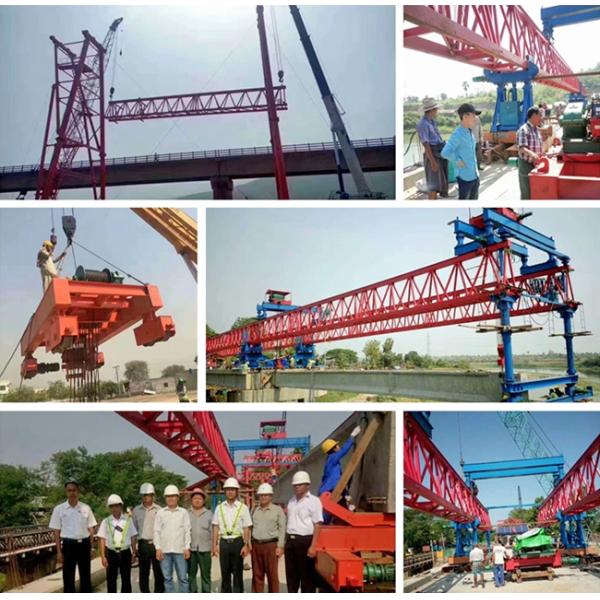

Installaton

Packing and Delivery

Beam Launcher Crane Machine

Launcher Bridge Erection Crane

Double Truss Launcher Crane Machine
