Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

Henan Dowell Crane Co., Ltd.
Contact Now

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

  • 1
  • 2
  • 3

Brand Name : Dowellcrane

Model Number : JQJ Beam Launcher Girder Crane

Certification : ISO CE BV CCC GOST

Place of Origin : Henan, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Sets per Year

Delivery Time : 60 work days

Packaging Details : Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.

Rated Lifting Moment : 500kn

Span : 50M

Lifting speed : 0-1m/min

crane travel speed : 5m/min

Running style : Rail

Work Duty : A5-A7

Lifting mechanism : Electric Trolley

Power supply : 3 Phase 380V 50hz

Color : Customized

Warranty : 2 years

Girder Structure : Box Type and Truss Type

Core Components : PLC, Bearing, Gearbox, Motor, Gear

Contact Now

highway bridge construction concrete launcher crane

Product Description

Highway bridge construction concrete launcher crane merges an adaptation of a wide range of work, excellent performance, convenient operation, safety structure into a single whole. It has the steel structure of rail type precast beam hoisting rack equipment. This product can be used not only in plain construction, but also to meet the construction of mountain highway slope, small radius curved bridge, skew bridge and tunnel bridge requirements.


Highway bridge construction concrete launcher crane can be divided into highway erecting machine, railway erecting machine. Can also be divided according to the layout difference, such as: help guide beam type, transport frame, bridge machine price, through the tunnel and so on. Can also be set up according to the method of division, segment assembly, such as the whole hole. Also has according to the tonnage to divide, the highway bridge machine general tonnage is smaller than the force, generally less than 300 tons. Railway bridge erecting machine especially high-speed railway bridge erecting machine general tonnage than force, 450 tons, 900 tons, are very rare. Also some factory production of bridge erecting machine can be road and rail dual-use, erecting machine manufacturers, this kind of erecting machine is generally suitable for ordinary railway Bridges.

Schematic drawing

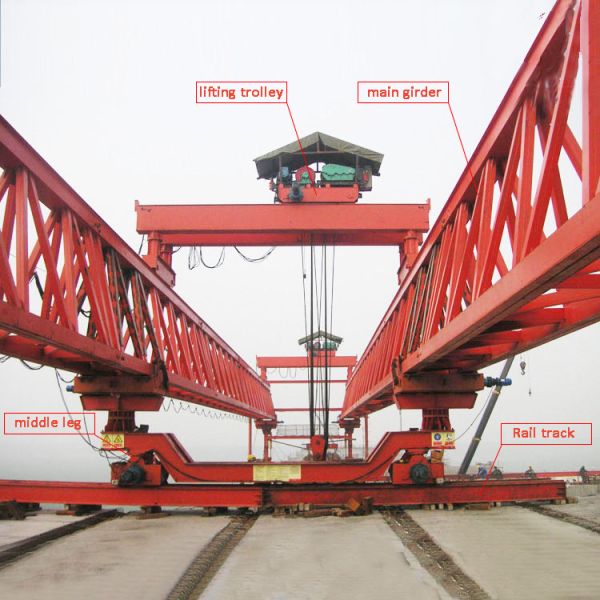

It composed of horizontal moving girder devices, main girders, support system, vertical moving gantry devices, horizontal moving gantry devices, hydraulic system and electrical control system.

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

Product Advantages

Highway bridge construction concrete launcher crane not only can meet the standard set up, but also it can meet the cross curve erection, variable span erection, span continuous beam, composite beam, continuous steel etc. In addition to bridge erection, simply supported girder erection and point lifting, it is characterized by good stability, high efficiency, safety and reliability, variable span convenient adjustment and convenient operation and etc.

Inquiry notice ! ! !

If you want to inquire about our launching girder gantry crane, please confirm with us the details as below. Then we will quote you a suitable price more quickly.

1. Lift capacity?
2. Span?
3. Lift height?
4. Power supply in your local?
5. Nearest port?
6. What kind of goods will this crane lift?

Technical Parameters

Lifting Weight t 60 80 100 150
bridge radius m 20-30 20-35 30-40 35-50
Slope below 1/20
Turning Radius m 200 250 300 350
Angle of Skew Bridge 0~15°
shop travelling speed lengthways moving
lifting 1 1.2 0.8 0.6
6/0.6
crane travelling speed lengthways moving 6/0.6
sidesway 6/0.6

Parts Of Crane

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting

Highway Bridge Construction Concrete Launcher Crane 500kn Lifting
