Brand Name : Dowellcrane
Model Number : European Double Beam Overhead Crane
Certification : CCC CE ISO
Place of Origin : China (Mainland)
MOQ : 1 Set
Price : USD 10000-80000 /Set
Payment Terms : L/C, T/T
Supply Ability : 5000 Sets per Year
Delivery Time : 40days
Packaging Details : Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation
Operator Type : Air operation + Ground operation
Color : Customized
Lifting speed : 5-15M/MIN
Working duty : A5~A8
Main electrical parts : International famous brand
Application : warehouse and so on

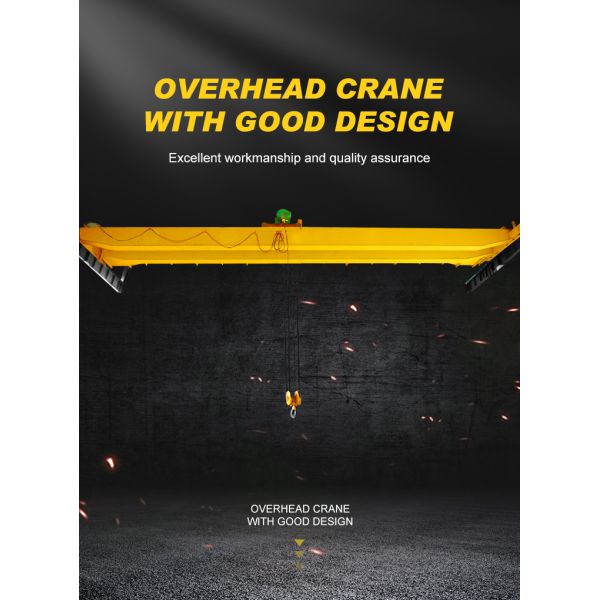

Electric Industrial Overhead Double Girder Bridge Crane 20 Ton
Product Description
Application
Features and Advantages:
1. Appearance: compact size, building headroom low light self-weight.
2. Adapt to the environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling.
3. Working temperature: - 25 degrees ~ 40 degrees.
4. Banned items: banned in inflammable, explosive, corrosive environment in use.
5. Classification: light and medium.
6. Operating methods: The ground operation and in the driver's cabin.
7. The cabin: Open-style and closed style
Note: It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion- proof or insulating working conditions.
Safety Device
1. Top quality longtime bearing polyurethane materials buffer
2. Lifting limit switch and traveling limit switch
3. Current overload protection system
4. Voltage lower protection function
5. Emergency stop system
6. Zero voltage protection
7. Weight overload limiter
Technical Data Sheet
Technical Data | ||||||||
Lifting Capacity | T | 3t | 5t | 10t | 16t | 20t | ||
Span | m | 10.5~31.5m | ||||||
Speed | Lifting | CD1 hoist | m/min | 8 | 7 | 3.5 | 6 | |
MD1 hoist | 8/0.8 | 7/0.7 | 3.5/0.35 | 6/0.6 | ||||
Traveling of hoist | 20 | |||||||
Traveling of crane | 20/30 | |||||||
Operational Model | Cabin; remote control; ground handle | |||||||
Working Duty | A3 | |||||||
Power Supply | 380V, 50Hz 3phase or on your requst |
Details Images
Our Advantages
Exhibition
After-sale Service
![]() |
Electric Industrial Overhead Crane , 20 Ton Double Girder Bridge Crane Images |
